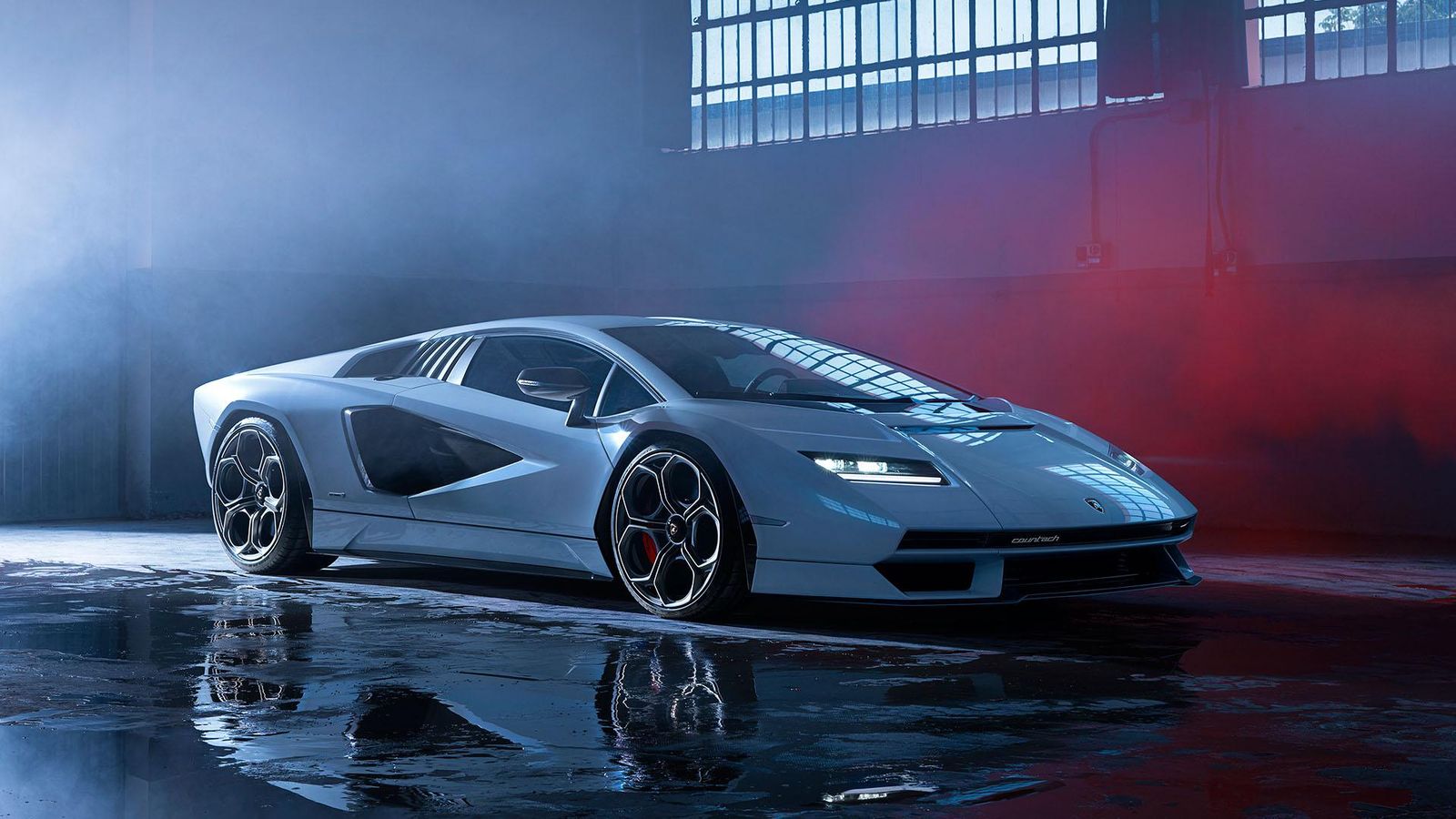

Lamborghini Countach LPI 800-4 – Specs & Performance

IC ENGINE

  • TYPE: V12, 60°, MPI (Multi Point Injection)
  • DISPLACEMENT: 6,498 cc (396.5 cu. in)
  • BORE X STROKE: 95 mm x 76.4 mm (3.74 in. x 3 in.)
  • VALVE PER CYLINDER: 4
  • VALVE GEAR: Variable valve timing electronically controlled
  • COMPRESSION RATIO: 11.8 +/- 0.2
  • MAX. POWER: 780 CV (574 kW) @ 8.500 rpm
  • SPECIFIC POWER OUTPUT: 120 CV/l (88.3 kW/l)
  • MAX. TORQUE: 720 Nm (531 lb.-ft.) @ 6.750 rpm
  • MAXIMUM ENGINE SPEED: 8,700 rpm
  • LUBRIFICATION: Dry sump
  • EMISSION CLASS: EURO 6 – LEV 3
  • EMISSION CONTROL SYSTEM: Catalytic converters with lambda sensors
  • COOLING SYSTEM: Water and oil cross-flow cooling system with variable air inlets
  • ENGINE MANAGEMENT SYSTEM: Lamborghini Iniezione Elettronica (LIE) with Ion current analysis

ELECTRIC POWER UNIT

  • SUPERCAPACITOR VOLTAGE: 48 V
  • SUPERCAP POWER DENSITY: 2400 W/kg
  • MAX OPERATIVE CURRENT: 600A
  • MAX POWER: 34 CV
  • MAX TORQUE: 35 Nm
  • WEIGHT E-MACHINE + SUPERCAP/ 34 kg

TRANSMISSION

  • TRANSMISSION TYPE: 4WD with Haldex generation IV
  • GEARBOX: 7 speed ISR, with e-machine installed on the rear wheels output, shifting characteristic depending on drive select mode
  • STANDARD: AMT
  • CLUTCH: Dry double plate clutch, Ø 235 mm (9.25 in.)
  • GEAR RATIOS:
    • 1st gear ratio: 3.909
    • 2nd gear ratio: 2.438
    • 3rd gear ratio: 1.810
    • 4th gear ratio: 1.458
    • 5th gear ratio: 1.185
    • 6th gear ratio: 0.967
    • 7th gear ratio: 0.844
    • Reverse ratio: 2.929
    • Final drive ratio (rear – front): 2.867 – 3.273

PERFORMANCE

  • TOP SPEED: km/h 355 (mph 221)
  • ACCELERATION 0-100 KM/H (MPH 0-62): 2.8 s
  • ACCELERATION 0-200 KM/H (MPH 0-124): 8.6 s
  • BRAKING 100-0 KM/H (MPH 62-0): 30 m

BODY AND CHASSIS

  • CHASSIS: Carbon fiber monocoque with aluminum front and rear frames
  • BODY: Full exterior body and interior trims (rear panels, door panels, tunnel, luggage compartment) in carbon fiber
  • MIRRORS: External mirrors heated, electrically adjustable, and foldable
  • REAR SPOILER: Rear electronically operated spoiler with 3 positions; completely paneled underbody

WHEELS

  • FRONT RIMS: 9″JX20″ ET 17.2
  • REAR RIMS: 13″JX21″ ET 51.7
  • FRONT TIRES: NEW PIRELLI P ZERO CORSA 255/30 ZR20
  • REAR TIRES: NEW PIRELLI P ZERO CORSA 355/25 ZR21

STEERING AND SUSPENSION

  • CONTROL SYSTEMS: ESC integrating ABS and TCS with different characteristics according to the driving mode selected
  • SUSPENSION TYPE: Pushrod magnetorheological active front and rear suspension with horizontal dampers and springs
  • SUSPENSION GEOMETRY: Aluminum double-wishbone fully independent front and rear suspension.
  • STEERING SYSTEM: Hydraulic assisted power steering, with 3 different Servotronic characteristics coupled with Lamborghini Dynamic Steering (LDS) and Rear Wheel Steering (RWS), managed by drive select mode
  • STEERING WHEEL RATIO 10:1 – 18:1
  • STEERING WHEEL turns lock to lock 2.1 – 2.4
  • STEERING WHEEL diameter 358 mm
  • KERB-TO-KERB TURNING CIRCLE: 11.5 m (37.73 ft.) – average value, variable due to dynamic condition thanks to LRS

BRAKING SYSTEM

  • BRAKES: Carbon-ceramic brakes with fixed monoblock calipers in aluminum with 6 pistons (front) and 4 pistons (rear)
  • FRONT BRAKES: Carbon-ceramic discs – ventilated with 400 mm diameter and 38 mm thickness
  • REAR BRAKES: Carbon-ceramic discs – ventilated with 380 mm diameter and 32 mm thickness

SAFETY

  • AIRBAGS: Driver, passenger and side airbags; kneels airbags in selected markets
  • PASSIVE SAFETY: Front and rear specific collapsible areas; side protection system
  • ACTIVE SAFETY: Electronic Stability Control (integrating ABS and TCS)

DIMENSION

  • LENGTH: 4,870 mm (191.73 in.)
  • WIDTH (EXCLUDING MIRRORS): 2,099 mm (82.64 in.)
  • WIDTH (INCLUDING MIRRORS): 2,265 mm (89.17 in.)
  • HEIGHT: 1,139 mm (44.84 in.)
  • WHEELBASE: mm 2,700 (in 106,30)
  • DRY WEIGHT: 1595 kg (3516 lb)
  • TOTAL WEIGHT PERMITTED: 2100 kg (4630 lb)
  • WEIGHT DISTRIBUTION: % 43 / 57
  • TRACK (front – rear): 1,784 mm (70.23 in.) – 1,709 mm (67.28 in.)
  • GROUND CLEARANCE (standard – lifting): 115 ± 2 mm (front with lifting 155 mm)

CAPACITIES

  • FUEL TANK: 70 liters
  • ENGINE OIL: 13 liters
  • ENGINE COOLANT: 25 liters
  • LUGGAGE COMPARTMENT: 63 liters

CONSUMPTION

  • COMBINED: Pending homologation
  • CO2 EMISSIONS: Pending homologation
