General
|
|
| Type |

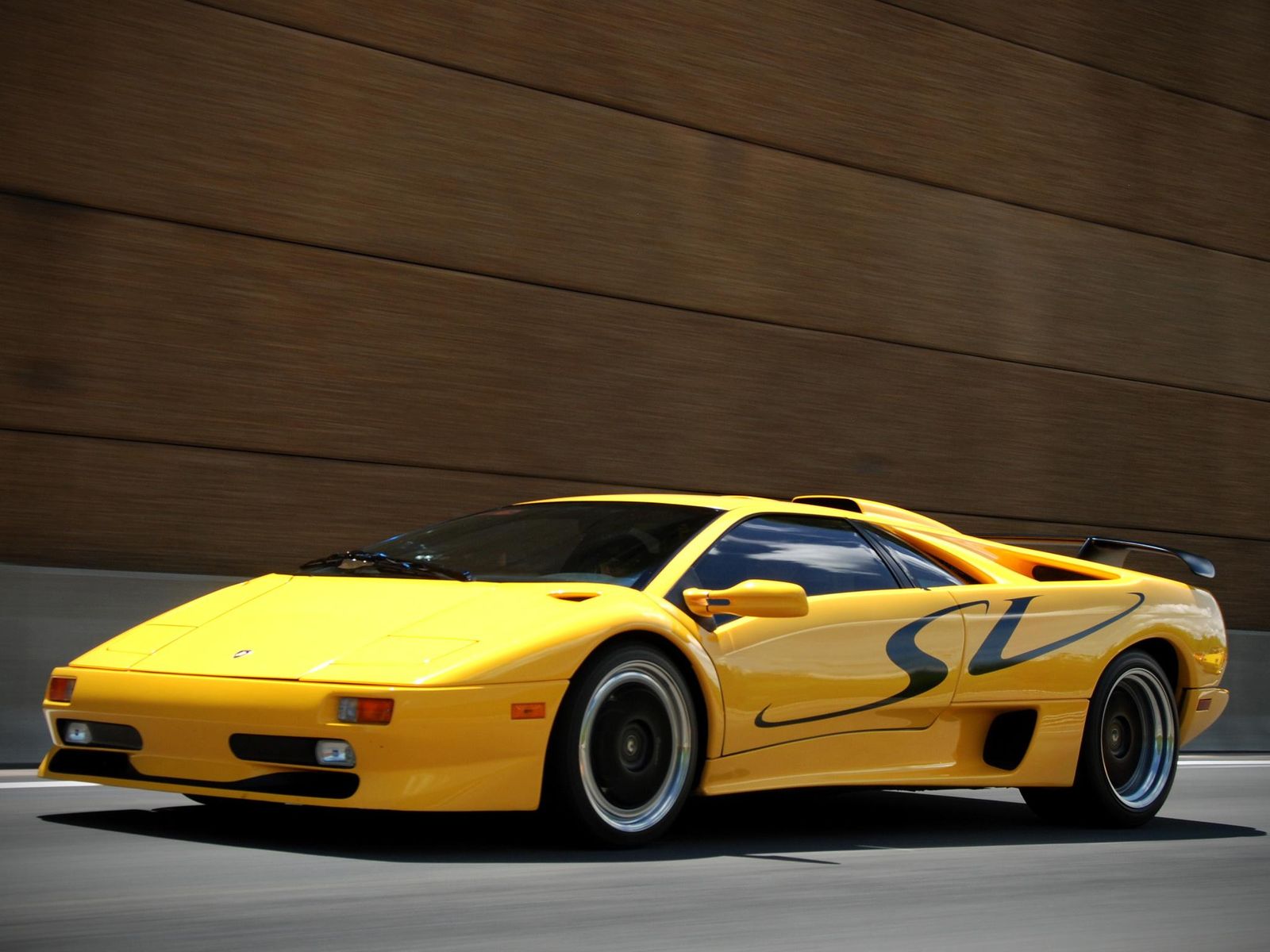

Diablo SV MY1999 |
| Years built |
October 1998 – December 1999 |
| Production |
100 units |
| Chassisnr. |
estimated at about 100 (25 were imported into the United States) |
| Presentation |
Paris Mondial de l’Automobile in October 1998 |
| Type of car |
Two door coupe, two seater berlinetta, horizontally hinged doors |
| Designed by |
Marcello Gandini |
| Built by |
Automobili Lamborghini SpA |
Dimensions
|
|
| Wheelbase |
2650 mm / 104.15 in |
| Overall length |
4470 mm / 175.67 in |
| Overall width |
2040 mm / 80.17 in |
| Overall height |
1115 mm / 43.82 in |
| Front track |
1540 mm / 60.52 in |
| Rear track |
1640 mm / 64.45 in |
| Ground clear |
140 mm / 5.5 in |
| Front overhang |
930 mm / 36.55 in |
| Rear overhang |
890 mm / 34.98 in |
| Weight |
1530 kg / 3374 lbs |
| Distribution |
41/59 % front / rear |
Chassis
|
|
| Structure |
Steel rectangular tube high strength alloy and composite carbon fiber. |
| Body |
Aluminum alloy and hand lay-up composite materials with autoclave technology (cx : 0.31) |
| Suspension |
Independent front & rear double wishbones, coil springs. Parallelogram action unequal length wishbones, anti-roll bar and front anti-dive / anti-squat geometry. Electronic shock absorber system with automatic and manual control. |
| Brakes |
All-wheel Brembo ventilated and perforated disc brakes with aluminium alloy four cylinder calipers, an H-type hydraulic circuit, servo-assistance and a Kelsey Hays ABS. |
| Front |
355 mm / 13.95 in |
| Rear |
335 mm / 13.17 in |
| Steering type |
Power assisted mechanical rack and pinion, 3.2 turns lock to lock |
| Turning circle |
13 m / 43 ft |
| Front tire size |
235/35 ZR 18 |
| Rear tire size |
335/30 ZR 18 |
| Type of tire |
Pirelli P ZERO with asymmetric unidirectional tread |
| Front wheel |
8,5×18 inch |
| Rear wheel |
13×18 inch |
| Type of wheel |
Split rim OZ-Racing aluminum light-alloy. |
| Rear spoiler |
Optional, but mostly fitted |
Engine
|
|
| Type |
V-12 60 degree, light-alloy block with pressed-in liners, mid mounted (longitudal), rear wheel drive. |
| Distribution |
Dual overhead camshafts, chain drive, four valves/cylinder |
| Main Bearings |
7 |
| Cyl. Capacity |
5707 cc / 348 ci |
| Bore & stroke |
87×80 mm |
| Intake system |
Variable valve timing, electronically controlled. |
| Compr. Ratio |
10.0 |
| Max. power |
530 Bhp at 7100 rpm |
| Max. torque |
605 Nm at 5500 rpm |
| Cooling system |
Pressurized water cooling with two radiators and one oil cooler. |
| Ignition |
Electronic with integrated fuel injection |
| Emission contr. |
Twin, three way catalytic convertors with oxygen sensors. |
| Alternator |
85/115 Amp |
| Fuel system |
Original L.I.E. Lamborghini electronic sequential phased multipoint injection with a variable Valve Timing System mounted. |
| Fuel type |
Unleaded 95 R.O.N. |
| Lubrication |
Dry sump |
| Electr. system |
12 V |
| Fuel consumption |
16 Lit/100 Km |
Drivetrain
|
|
| Type |
Lamborghini five-speed + reverse manual all-synchromesh, with a traction control system with four settings, ZF final drive with limited-slip differential. |
| Clutch |
Dry-single plate, hydraulically operated |
| Disc diameter |
254 mm / 9.98 in |
| 1st gear ratio |
2.310:1 – Max speed 94 Km/h or 58 Mph |
| 2nd gear ratio |
1.520:1 – Max speed 142 Km/h or 88 Mph |
| 3rd gear ratio |
1.120:1 – Max speed 197 Km/h or 122 Mph |
| 4th gear ratio |
0.880:1 – Max speed 244 Km/h or 152 Mph |
| 5th gear ratio |
0.680:1 – Max speed 323 Km/h or 201 Mph |
| Reverse gear ratio |
2.120:1 – Max speed 102 Km/h or 63 Mph |
| Final drive ratio |
bevel gear type, limited slip 45% Ratio : 1:2.53:1 |
Performance
|
|
| Top speed |
323 Km/h / 201 Mph |
| 0 – 100 Km/h |
3.85 sec. |
| Standing Km |
20.10 sec. |
Capacities
|
|
| Fuel |
100 Liter / 26 Gallon |
| Engine oil |
13 Liter / 3 Gallon |
| Cooling system |
15 Liter / 4 Gallon |
| Luggage |
140 Liter / 37 Gallon |
Pricing
|
|
| US MSRP |
USD 238,700 |
| Current value |
$ 93,200 – $ 138,400 |
