A 5.7-Liter V12, a Gated Manual, and Nothing Between You and the Road
Between 1990 and 2001, Lamborghini built around 2,903 Diablos. Every single one ran a 5.7-liter naturally aspirated V12 through a 5-speed manual gearbox with a dry, single-plate clutch. No paddle shifters. No traction control worth mentioning. No electronically adjustable dampers. The Murcielago that replaced it arrived with a viscous-traction all-wheel-drive system refined by Audi engineers and, eventually, an e-gear automated manual. The Diablo missed all of that, and that absence is precisely what makes it the most visceral V12 Lamborghini ever offered to the public.
Marcello Gandini penned the original shape, the same designer responsible for the Miura and Countach. His wedge profile was softened during development at Chrysler’s design center (Chrysler owned Lamborghini from 1987 to 1994), rounding off some of Gandini’s sharper edges to meet American crash regulations and aerodynamic targets validated at the Nardo circuit in southern Italy. Rally legend Sandro Munari served as a test driver during development, a detail that speaks to the kind of unfiltered mechanical feedback Lamborghini wanted from the chassis. Munari built his career reading grip levels through a steering wheel, not a dashboard screen.
The base Diablo produced around 485 hp and could reach a reported top speed of 325 km/h. Those numbers landed it squarely in Ferrari F40 and Porsche 959 territory, but the Diablo’s character was distinct: a longer, heavier grand tourer with a mid-mounted V12 that breathed through individual throttle bodies and needed to be revved past 5,000 rpm to come alive. Below that threshold, the engine was tractable but unremarkable. Above it, the V12 produced a mechanical howl that no turbocharged competitor could replicate.

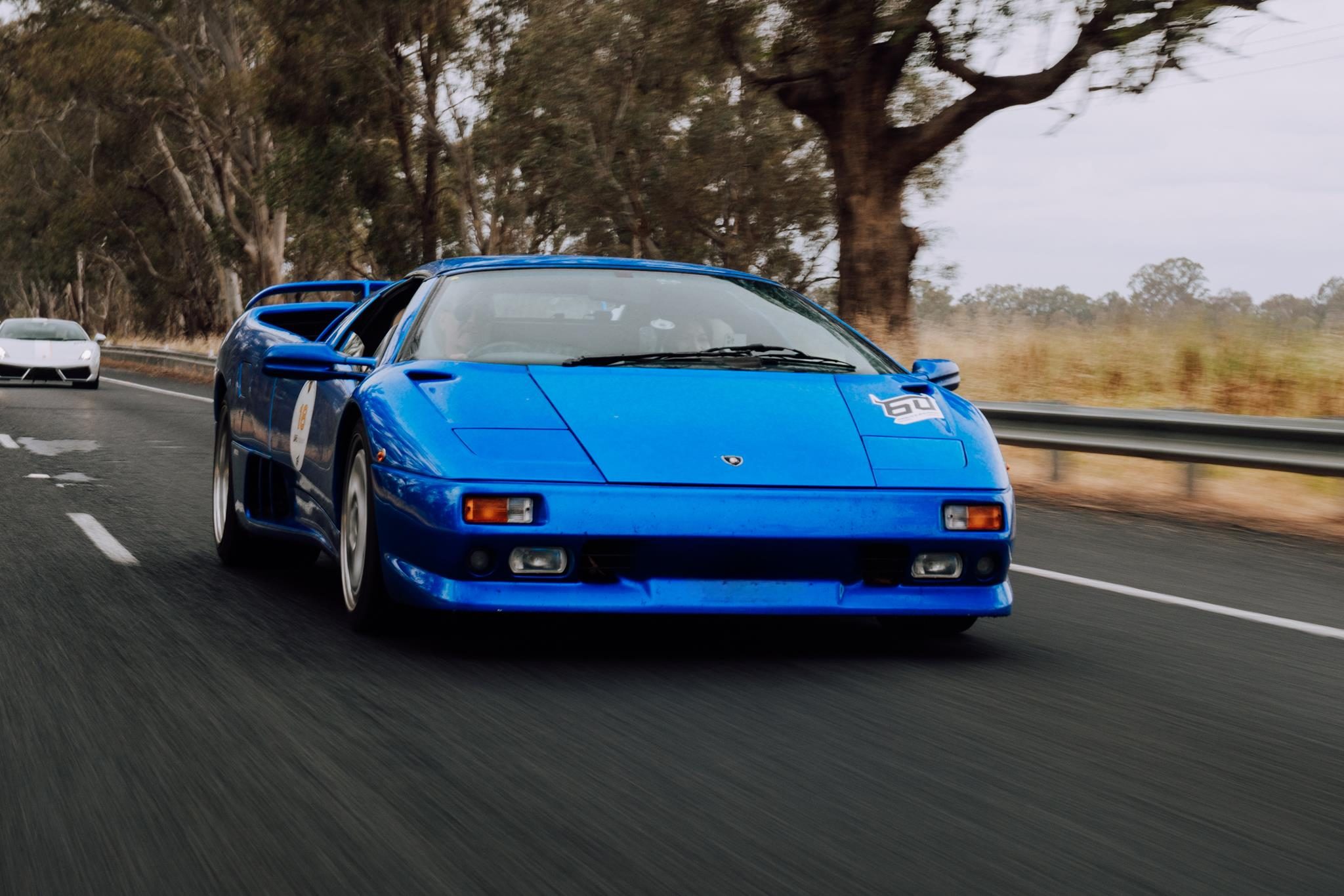

A classic blue Lamborghini Diablo drives on a road, with a white Lamborghini in the background, surrounded by blurred trees.
Four Designers, Four Eras, One Chassis
Few supercars can claim four distinct design hands across a single generation, and the layered result tells you something about how stubbornly analog the Diablo’s bones remained even as its skin evolved. Gandini’s original lines were modified by Chrysler’s in-house team before production began. When Volkswagen Group acquired Lamborghini in 1998, the task of refreshing the car fell to Luc Donckerwolke, the Belgian designer who would later shape the Murcielago. Donckerwolke restyled the Diablo SV and VT for their later iterations, sharpening the headlamp treatment and updating the rear fascia while keeping the fundamental proportions intact. Centro Stile Lamborghini, the company’s own design studio, also contributed across the decade-long production run.
The visual identity shifted noticeably from year to year. Early cars carry Gandini’s rounder greenhouse and pop-up headlights. Late-production models, particularly the VT 6.0 and the GT, wear Donckerwolke’s more angular treatment. A 1991 Diablo and a 1999 Diablo GT look like relatives, not twins.
Underneath, engineers Giulio Alfieri and Giancarlo Barbieri shaped the mechanical architecture. The tubular steel frame, combined with aluminum, carbon, and fiberglass body components, gave the Diablo a structure that was stiff enough for the era but light-years from the carbon-fiber monocoques that would define the Murcielago and Aventador. Dual-wishbone suspension at all four corners, with coil springs and telescopic shock absorbers, provided geometry that rewarded smooth inputs and punished abrupt corrections. Through every exterior revision, that unassisted, driver-dependent chassis stayed fundamentally the same.

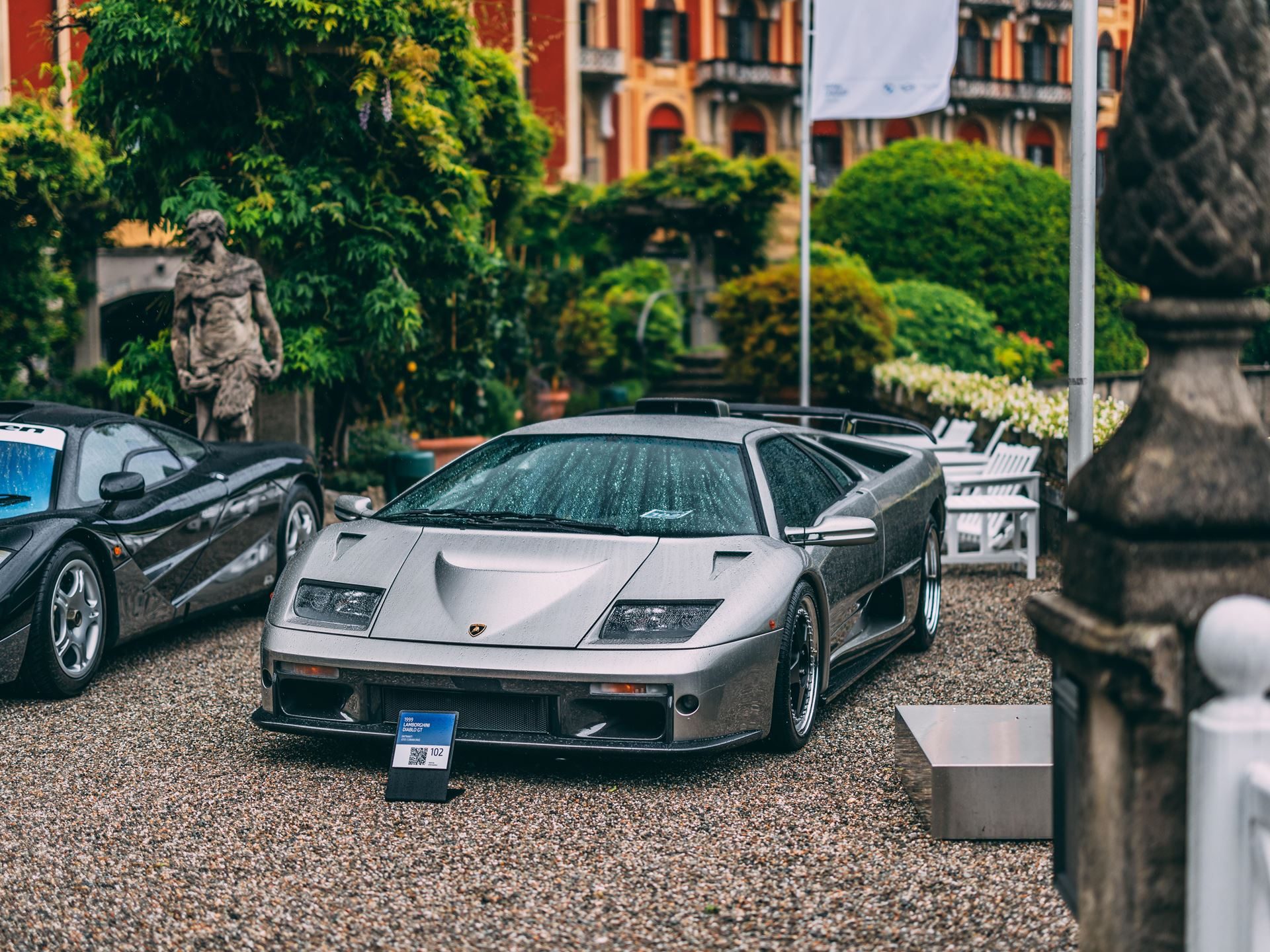

A silver Lamborghini Diablo parked on a gravel path at an outdoor event, with a McLaren F1 visible in the background and ornate architecture.
VT, SV, GT: Choosing Your Level of Analog Commitment
The Diablo lineup branched into variants that represented genuinely different philosophies, not just trim levels with upgraded leather. Each one recalibrated how much the car would help you and how much it would leave you on your own.
The Diablo VT introduced all-wheel drive with a central viscous coupling, a system that sent torque to the front axle passively based on rear-wheel slip rather than through electronic torque-vectoring software. It used electronic LIE multipoint fuel injection and wore Pirelli P Zero tires (235/40 ZR17 front, 335/35 ZR17 rear) on 17-inch wheels. Ventilated disc brakes measured 330 x 32 mm at the front and 284 x 22 mm at the rear. Records indicate the VT produced around 492 CV at 6,800 rpm, though some sources cite higher figures for later versions. Lamborghini reportedly built around 529 examples.
The Diablo SV (Super Veloce) stripped away the all-wheel-drive hardware entirely, returning to rear-wheel drive and shedding weight in the process. It wore an adjustable rear wing and ran larger ventilated disc brakes (355 x 32 mm front, 335 x 32 mm rear) than the VT. Power figures vary across sources, with reports ranging from 510 hp to 530 CV depending on model year and market. Donckerwolke designed the SV’s updated bodywork. The car used Lamborghini’s own LIE fuel injection with intake manifold and breathed through a catalytic converter with lambda sensor. In rear-drive form, the SV communicated tire grip through the steering with an honesty the VT’s front driveshafts slightly diluted.
The Diablo SE (Special Edition) accounted for around 155 units, while the Diablo GT, the most extreme road-legal variant, saw production of approximately 80 cars and could reach speeds in the region of 340 km/h. The Diablo SV-R, a dedicated racing variant developed at Lamborghini’s headquarters in Sant’Agata Bolognese, produced around 540 hp and was built in a run of approximately 33 units. The SV-R formed the basis of Lamborghini’s one-make racing series, a direct ancestor of the Super Trofeo program that runs today.
| Variant | Drive Layout | Approx. Production | Key Distinction |
|---|---|---|---|
| VT | AWD (viscous coupling) | ~529 | All-weather usability |
| SV | RWD | Conflicting records | Lightweight, adjustable wing |
| SE | RWD | ~155 | Limited special edition |
| GT | RWD | ~80 | Highest top speed (~340 km/h) |
| SV-R | RWD (race) | ~33 | Track-only, ~540 hp |

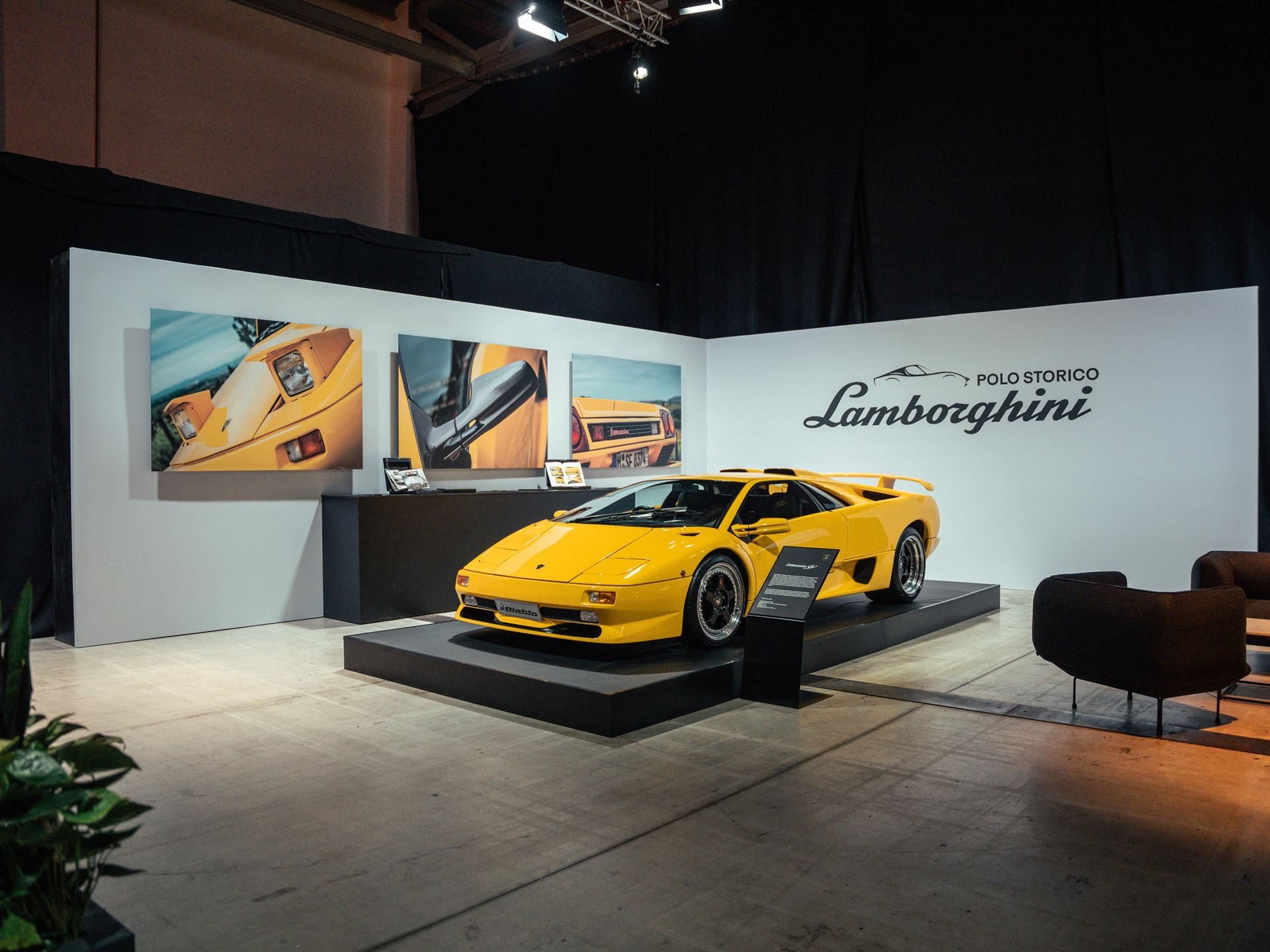

A bright yellow Lamborghini Diablo VT is displayed on a black platform at an event, with 'Polo Storico Lamborghini' branding on the wall and supporting images.
What “Analog” Actually Means When You’re Driving One
The word gets overused, so here is what it means in concrete terms for a Diablo owner. The throttle cable connects mechanically to the throttle bodies. The steering is hydraulically assisted but offers no variable-ratio trickery. The 5-speed gearbox requires the driver to match revs on downshifts or suffer a lurch that the entire car transmits through the seat. The brakes lack ABS on early models. And the suspension geometry, while competent for its era, provides no adaptive modes, no lift system for speed bumps, no magnetic dampers.
Line up the successors and the contrast sharpens with each generation. The Murcielago brought e-gear automated shifting and electronically managed all-wheel drive, eventually adding a full suite of stability interventions. The Aventador pushed further with independent shifting rods, magnetorheological dampers, and drive-mode selectors. By the time the Revuelto arrived with its plug-in hybrid V12 architecture and multiple electric motors, the Diablo’s cockpit belonged to a different century.
Collectors on enthusiast forums consistently describe the Diablo’s driving experience in terms of physical effort. The clutch pedal requires genuine leg strength. Visibility through the rear quarter is essentially nonexistent. Parking demands faith in side mirrors and spatial memory. These are not complaints. They are the reasons a certain type of buyer pays a premium for a well-sorted Diablo over a newer, faster, more capable Lamborghini.
For anyone considering a Diablo purchase: the VT offers the most forgiving entry point thanks to its all-wheel-drive traction, but the SV delivers the purer driving experience. Budget for a pre-purchase inspection by a specialist familiar with the Diablo’s specific failure points, particularly the cooling system, the power window regulators, and the condition of the tubular steel frame at its mounting points.
The Diablo’s Place in a Lineup That Left It Behind
In the context of the brand’s V12 flagship lineage, the Diablo sits at a peculiar inflection point. It carried forward the Countach’s mid-engine, naturally aspirated V12 formula without fundamental electronic intervention, yet it also served as the platform where Lamborghini first experimented with all-wheel drive (the VT) and factory-backed one-make racing (the SV-R). Both ideas became defining features of every V12 Lamborghini that followed. The Diablo planted the seeds of the modern era while remaining stubbornly rooted in the old one.
The Diablo VT CART Pace Car, with a reported output of around 600 hp, appeared in black and gold versions that paced American open-wheel races, placing the car in front of a television audience the Countach never reached. These pace cars now command significant collector interest as artifacts of Lamborghini’s push into the American market under Chrysler’s ownership.
Among the rarest individual cars, specific chassis numbers appear in Lamborghini’s own Polo Storico records. Diablo GT chassis #ZA9DE21A0YLA12490 (car number 6 of the GT production run) and Diablo SV chassis #ZA9DE21A0XLA12178 have both appeared at Lamborghini-sanctioned concours events, their provenance verified by the factory’s heritage department. Diablo SE number 64, from the 155-unit SE run, carries similar documentation.
The collector market treats the Diablo GT as the apex of the range, and rightly so: around 80 built, top speed capability near 340 km/h, rear-wheel drive, and the most aggressive bodywork Lamborghini fitted to any road-legal Diablo. The SV-R, with only about 33 examples produced, occupies an even more rarefied space as a factory race car that predates the corporate infrastructure Audi would later build around Squadra Corse.
Total production across all variants and model years reached around 2,903 units, including roughly 873 of the original base model. Every Lamborghini V12 built after the Diablo gained electronic systems that made the car faster, safer, and more accessible. None of them left the driver quite as exposed. The Diablo asked its owner to supply the skills that software now provides, and for a growing number of collectors, that requirement is the entire point.
A silver Lamborghini Diablo GT with its scissor doors open on a red carpet, with a man in a light suit standing nearby and a crowd in the background.
