The Miura’s Enduring Engineering Legacy
Every mid-engine supercar built in the last six decades owes a structural debt to a decision made by three young men in Sant’Agata Bolognese who were, quite literally, working after hours. Engineers Gian Paolo Dallara and Paolo Stanzani, along with New Zealand test driver Bob Wallace, began developing the concept for a new kind of sports car in 1964, drawing on motorsport principles that no road car manufacturer had dared to apply at production scale. The result was a 3,929cc V12 mounted transversely behind the driver, a layout so radical that it didn’t just challenge the front-engine grand touring convention of the era. It obliterated it.
Lamborghini says this transverse mounting was directly inspired by motorsport design, and the reasoning was practical as much as philosophical. Placing a big V12 sideways behind the occupants kept the wheelbase compact and concentrated mass near the center of the car, improving weight distribution in ways that a long-hooded front-engine GT simply could not match. The steel chassis itself, featuring a wall thickness of just 0.8 millimeters and peppered with punch holes for weight savings, tipped the scales at only 120 kilograms. For context, that is roughly the weight of a large adult male.
What competitors rarely discuss, and what makes the Miura’s engineering genuinely audacious even by today’s standards, is the shared sump. Initially, the engine, transmission, and differential all lived in a common housing and shared a single lubrication system. This was an extraordinarily bold, space-saving solution, but it was also technically fraught. Engine oil contaminated with gearbox metal particles is not ideal for longevity, and Lamborghini eventually developed a separate lubrication system for the engine and transmission during the production run. That evolution tells you something important about how Lamborghini operated in the 1960s: ship the audacious idea first, then refine it in the field. It is a philosophy that echoes through the brand’s history, from the Countach’s visibility challenges to the Aventador’s single-clutch gearbox.
Another detail that almost never surfaces in anniversary coverage: the crankshaft rotated counterclockwise. This was an unusual engineering choice that affected the car’s dynamic behavior and was part of the V12’s original architecture, designed by Giotto Bizzarrini. Paolo Stanzani’s central contribution was adapting Bizzarrini’s engine for road use and series production, a task that required balancing the motor’s competitive instincts with the realities of daily driving, reliability, and the manufacturing capabilities of a company that was barely three years old.
Design That Defined a Segment
On November 3, 1965, Lamborghini did something no automaker had attempted: it displayed a bare chassis at the Turin Motor Show and expected people to be impressed. The satin black steel frame sat alongside the Lamborghini 350 GT and 350 GTS, and it promptly stole the show from both finished cars. Four white exhaust pipes caught visitors’ attention, but the real spectacle was the transverse V12 sitting behind where the driver would eventually sit, visible and unapologetic.
A popular anecdote holds that Nuccio Bertone appeared at the Lamborghini stand toward the end of the show, examined the chassis, and confidently told Ferruccio Lamborghini that his studio would design “the perfect shoe for this wonderful foot.” Whether the exchange happened exactly that way is impossible to verify, but what followed is documented fact. This marked Lamborghini’s first collaboration with Carrozzeria Bertone, and Marcello Gandini, then Head of Design at the firm, was responsible for the bodywork. The Bertone design was finalized in early January 1966, and 30 Bertone employees had the prototype completed by March. In the world of modern automotive development, where a single headlight cluster can take 18 months to finalize, that timeline feels almost fictional.

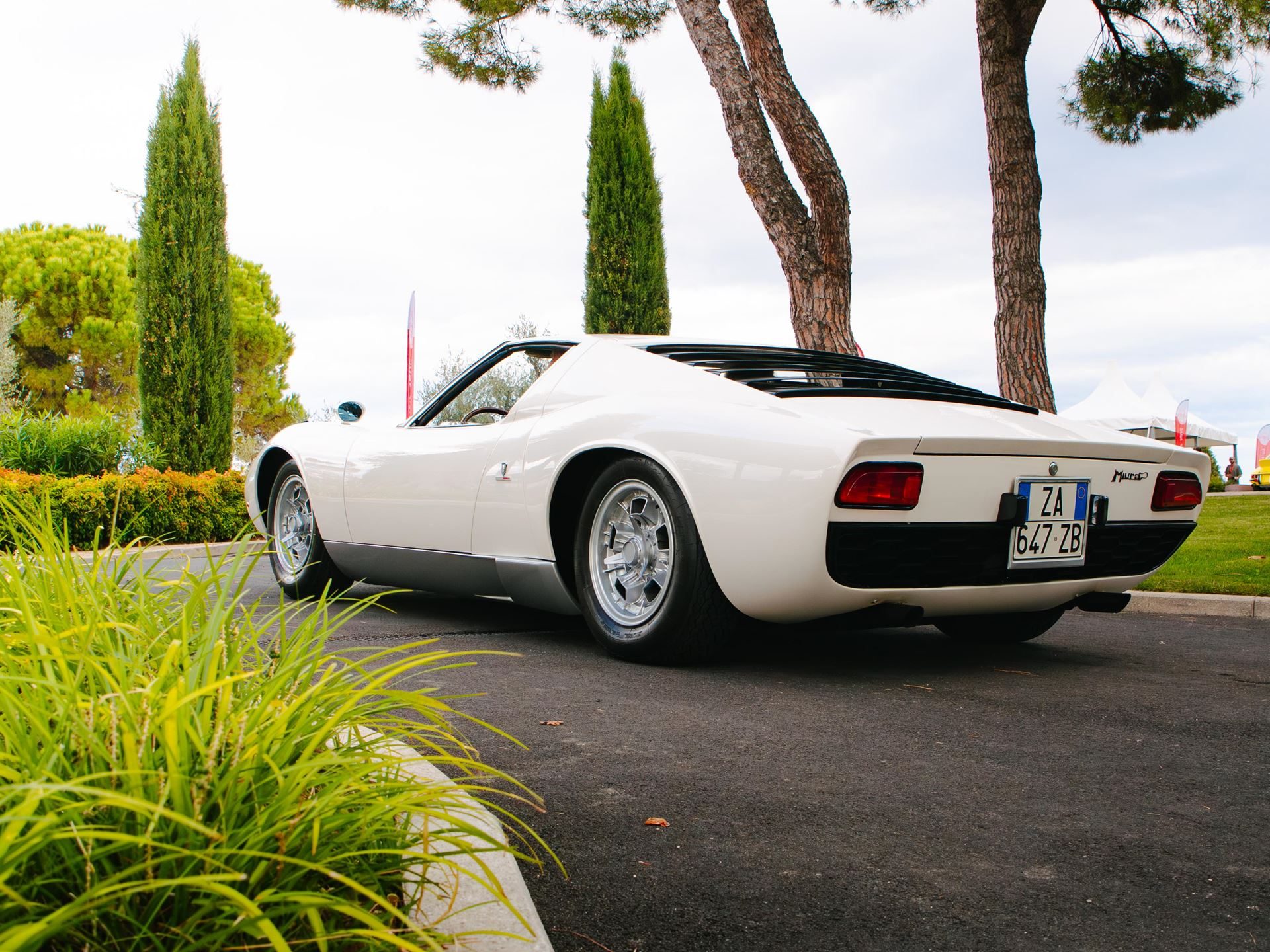

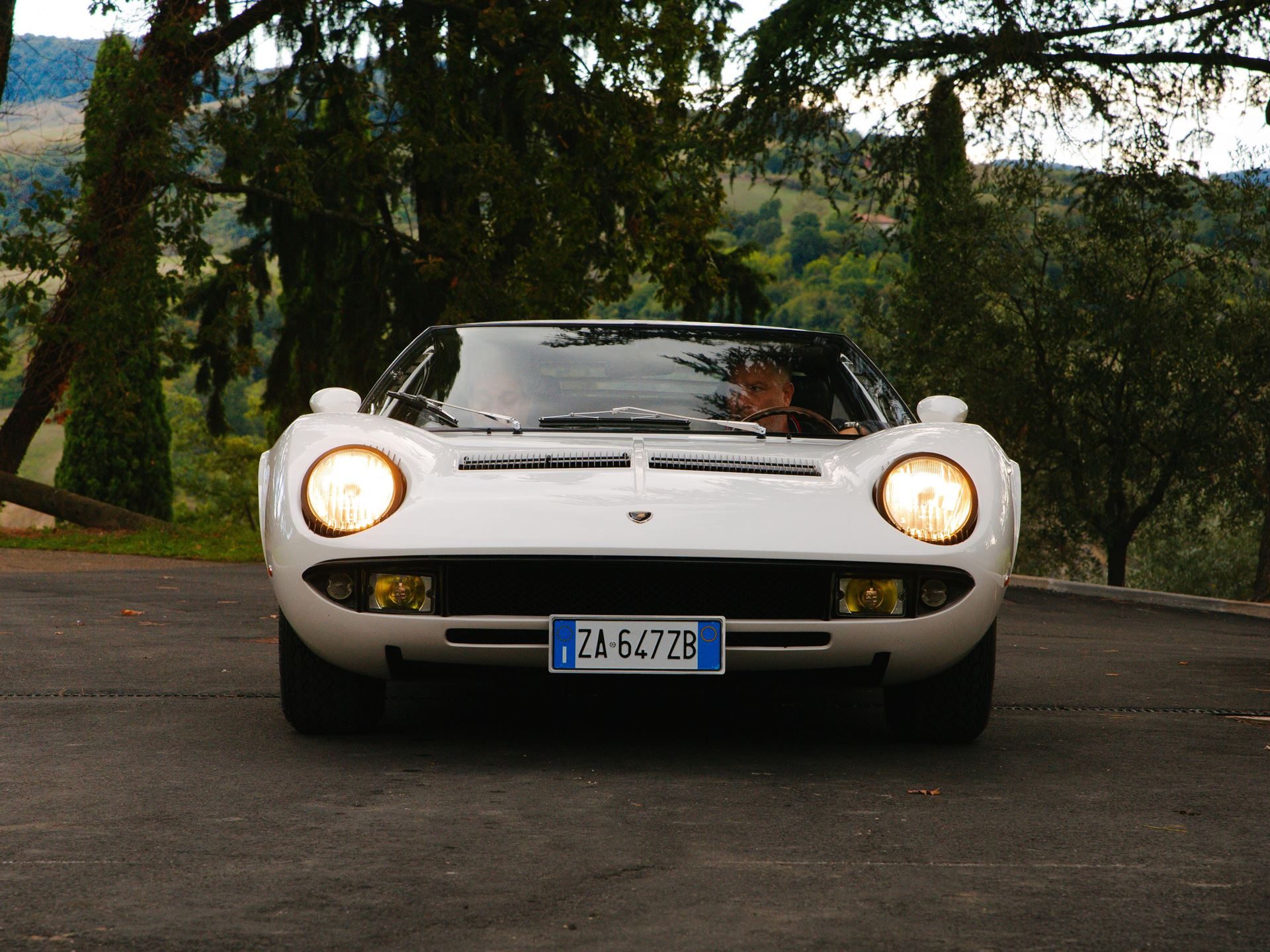

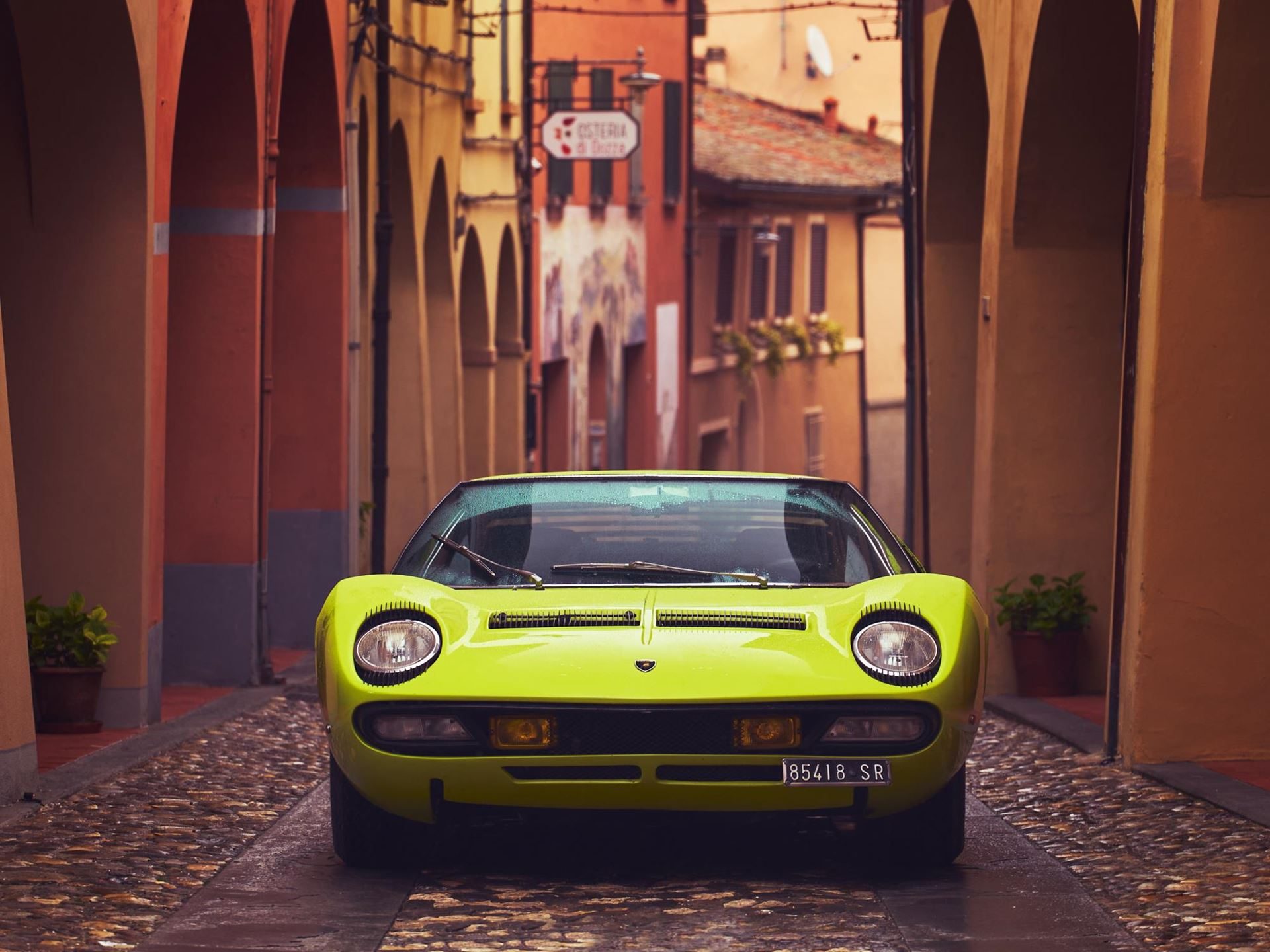

The car that appeared on Bertone’s stand at the Geneva Motor Show on March 10, 1966, was finished in orange and ignored every existing convention about what a road car should look like. It stood around 105 centimeters tall. Its compact length of 4.36 meters was a direct consequence of the transverse engine layout, which eliminated the need for a long hood. Pop-up headlights with their distinctive “eyelashes,” generous air intakes behind and below the doors feeding the V12, and black slats covering additional ventilation openings created a visual language that the entire supercar industry would spend the next sixty years quoting.
The black anodized trim, used instead of the chrome that was standard practice in the 1960s, was a quietly revolutionary aesthetic choice. It gave the Miura a modern, almost predatory presence that chrome-laden competitors simply could not match. Road & Track put a Miura in a wind tunnel in 2024 to test how far supercar aerodynamics have progressed since 1965, a project that underscores just how seriously the car’s form is still studied and debated more than half a century later.
One aspect that gets almost no attention in anniversary coverage is the Miura’s color palette. Lamborghini says it was one of the first super sports cars to offer a bold and highly customizable range of finishes, and the options list reads like a poetry anthology: Azzurro Mexico Metallizzato, Luci del Bosco Metallizzato, Giallo Fly, Oro Metallizzato, Verde Rio Metallizzato. In an era when most performance cars came in red, white, or silver, Lamborghini was already building the personalization culture that today drives its Ad Personam program. The Miura was, in a very real sense, the first Lamborghini that buyers could make truly their own.
Performance and Evolution of the V12
The Miura‘s V12 was not a static engine. Lamborghini says the base P400 delivered 350 hp, the P400 S raised that to 370 hp, and the final P400 SV pushed output to 385 hp at 7,850 rpm with 388 Nm of torque at 5,500 rpm. In its ultimate form, Lamborghini claims the engine could propel the car to a top speed of 290 km/h (174 mph), which the company says made it the fastest production car in the world at the time. The P400 managed 0 to 100 km/h in 6.7 seconds and a top speed of 280 km/h. Those numbers may seem modest against a modern Revuelto, but in the mid-1960s, they were from another planet.

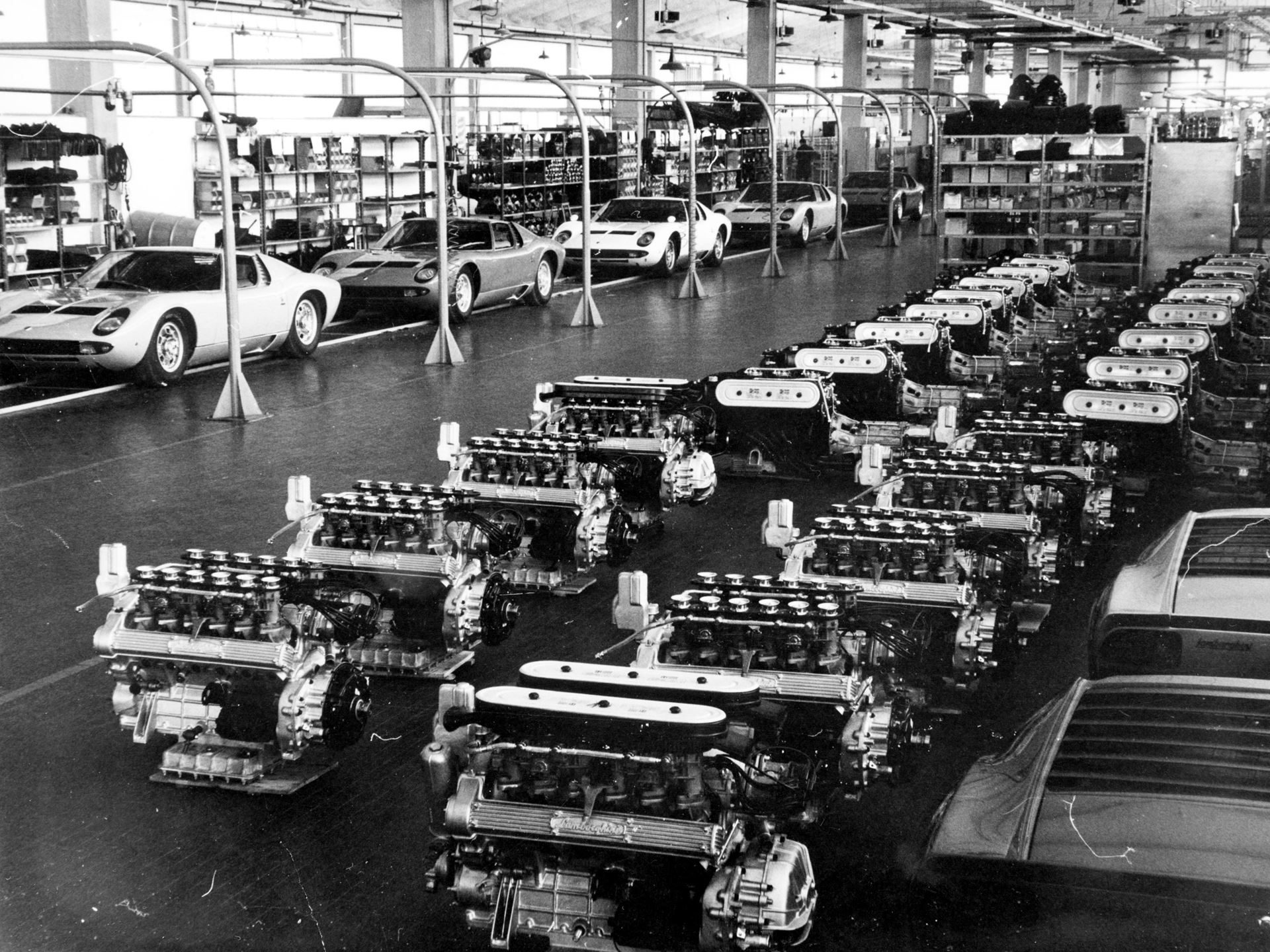

The engine’s specification sheet reveals the depth of its engineering. A 60-degree bank angle, four camshafts, V-shaped overhead valves, a seven-bearing crankshaft, and four Weber 40 IDL 3L carburetors with twelve throttle valves. Power reached the wheels through a dry clutch and a manual five-speed transmission with an open shift gate, a tactile, mechanical experience that modern paddle-shift supercars have traded away for speed. Between 1966 and 1973, according to official records cited in the press release, 763 Miura models were built at the factory in Sant’Agata Bolognese.
For anyone considering what these cars are like to actually live with, the press release is refreshingly candid: the Miura was “an uncompromising car to drive.” No power steering, no electronic assistance, direct mechanical feedback throughout. Owners and automotive journalists who have driven surviving examples consistently describe a car that demands total concentration and rewards it with an emotional, visceral connection to the road that modern supercars, for all their technological superiority, struggle to replicate. Road & Track once called it a car that’s “tough to enjoy but easy to love,” which may be the most honest summary of the Miura ownership experience ever written.
| Model | Power | Top Speed | Key Change |
|---|---|---|---|
| P400 | 350 hp | 280 km/h | |
| P400 S | 370 hp | ||
| P400 SV | 385 hp at 7,850 rpm | Separate lubrication, wider rear tires |
The SV is the version collectors prize most highly, and for good reason. Beyond the power increase, it incorporated the separate lubrication system that resolved the shared-sump compromise of earlier cars, plus wider rear tires for improved grip. If you are in the market for a Miura (and if production numbers are any guide, your chances are slim), the SV represents the most resolved version of the original concept.
The Miura’s Place in Lamborghini’s Lineup and Future

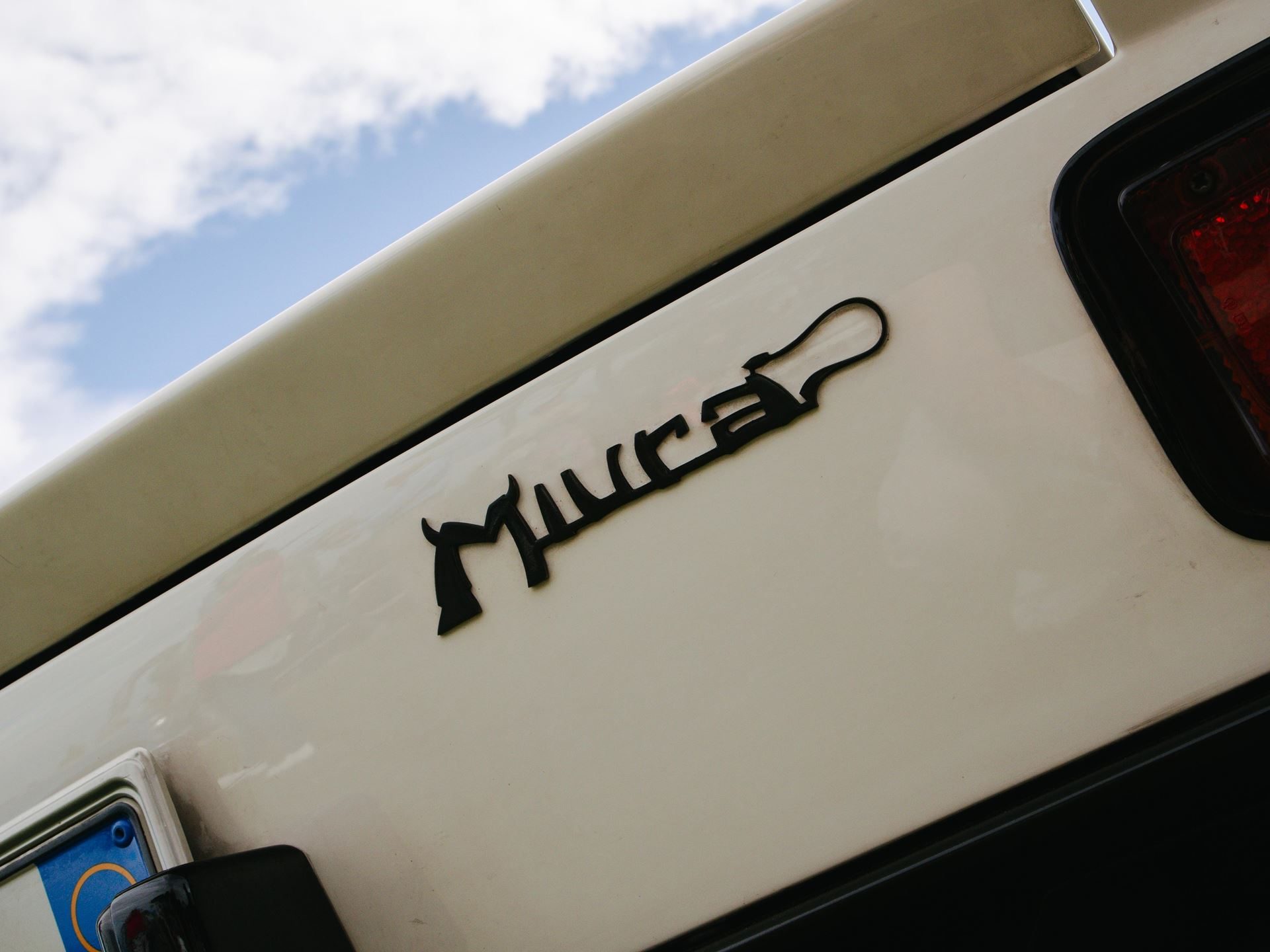

The Miura was the first Lamborghini model named after a famous Spanish bull breed, specifically the powerful bulls bred by Don Eduardo Miura Fernández. That naming convention, which gave us the Espada, Islero, and Murciélago, started here. It was not just a marketing decision. It was a declaration of identity for a company that was barely three years old and already picking fights with Ferrari.
And that competitive context matters. Lamborghini’s young engineering team looked at the established consensus and decided to do the opposite. The Miura’s mid-engine layout did not just offer better weight distribution. It represented a fundamentally different philosophy about what a performance car should be: not a refined long-distance cruiser with a big engine up front, but a compact, purpose-built machine where the driver sat as close to the mechanical action as possible.
That philosophy has threaded through every generation of Lamborghini’s flagship. The Aventador Ultimae, released in 2022, marked the end of Lamborghini’s pure V12 era. In 2023, the V12 evolved into an electrified chapter with the Revuelto, which pairs the iconic engine with a hybrid system.
For enthusiasts who wonder whether Lamborghini might revisit the Miura name directly, Road & Track reported in 2025 that Lamborghini’s Chief of Design, Mitja Borkert, stated clearly that a new Miura is not coming. The design team, according to that report, is not interested in looking backward. It is a stance that Ferruccio Lamborghini himself would probably have appreciated. The Miura was never about nostalgia. It was about doing what nobody else had the nerve to try.
The Miura also left its mark on popular culture in ways that reinforced Lamborghini’s image for decades. The car gained cinematic fame in the opening scene of The Italian Job (1969), where the V12’s sound became inseparable from the visual language of the sequence. Countless magazine covers and editorial features followed, helping to define the very idea of what a supercar looked and sounded like.
Anniversary Celebrations in 2026
Lamborghini plans celebrations throughout the year in 2026 to mark the anniversary. The centerpiece for owners and heritage enthusiasts is a Lamborghini Polo Storico Tour, organized by the brand’s Heritage department and dedicated exclusively to the Miura, scheduled from May 6 to 10 in Northern Italy.
“The Miura did more than introduce a new car. It changed the course of automotive history,” said Stephan Winkelmann, President and CEO of Automobili Lamborghini.
For current Lamborghini owners and prospective buyers, the 60th anniversary is worth watching for a practical reason beyond nostalgia. Lamborghini’s heritage celebrations have historically coincided with increased collector market activity around the featured model. The Miura already commands extraordinary values at auction, and a year of sustained global attention from the factory is unlikely to cool that market. If you have been considering a Miura purchase, the anniversary year may paradoxically be the most expensive time to buy, but also the best time to find one, as owners and dealers bring cars out of long-term storage for events and exhibitions. The 763 examples produced are not getting any more numerous, and each anniversary reminds the market exactly why these cars matter.
